Technical Specification
Frameset
Fork Material : Carbon
Fork Type : Rigid tapered carbon fork
Frame Material: Aluminium 6061
Frame Shape: Crossbar
Total Bike Weight: 16.5kg
Drivetrain
Bottom Bracket: Pressfit BB 86mm
Cassette: Shimano HG200 9 speed 11-34t
Chain: KMC x9 9 speed chain
Crankset: Aluminium crank with direct mount chainring and Chainguard 40t 170mm
Drivetrain: Chain
Gear Shift: Derailleur Gear
Pedals: Aluminium Platform Pedal

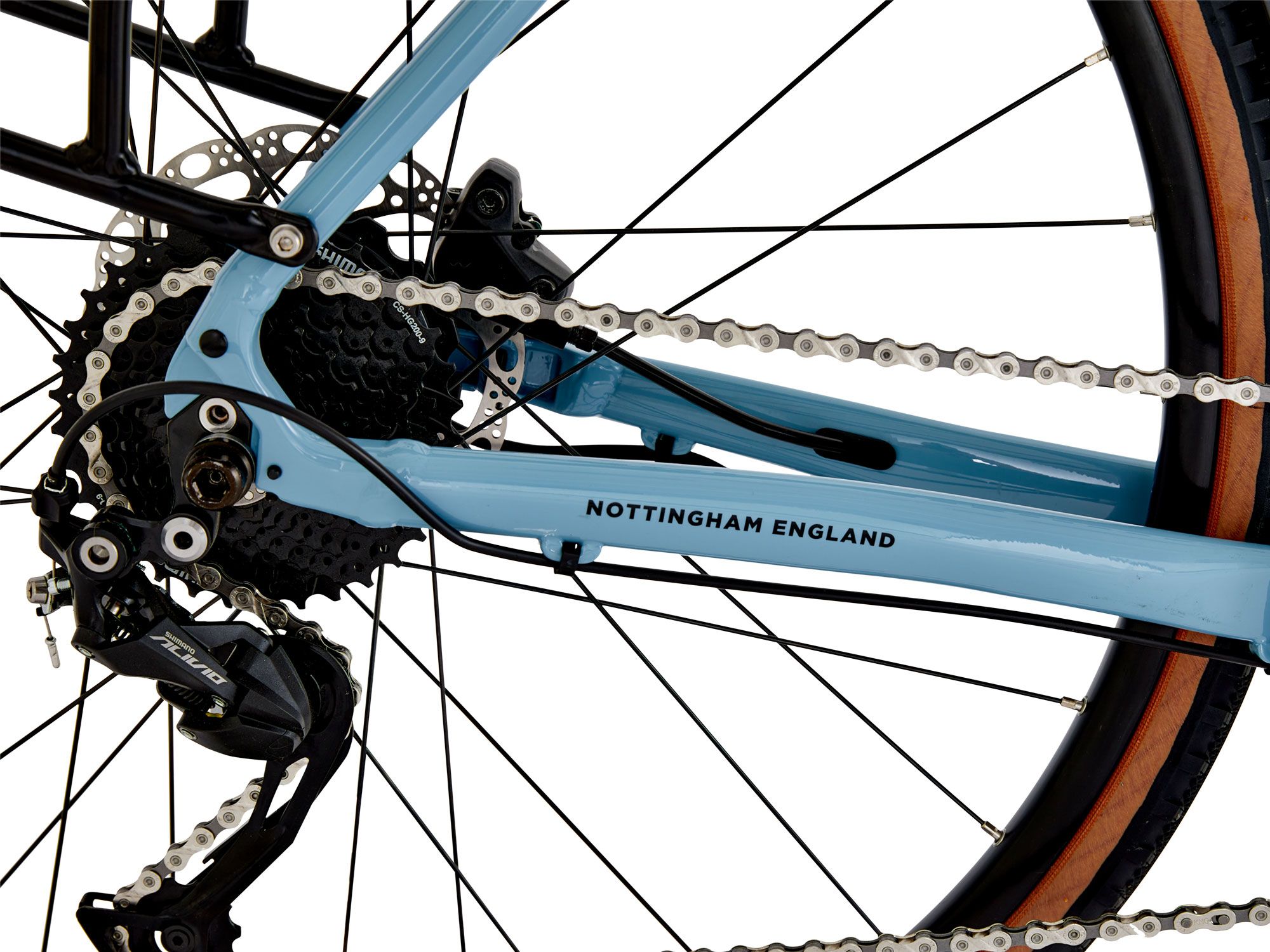

Rear Derailleur: Shimano Alivio 9 speed rear derailleur
Extras
Front Light: AXA Compact Line 35
Mudguards: Curana full mudguard set

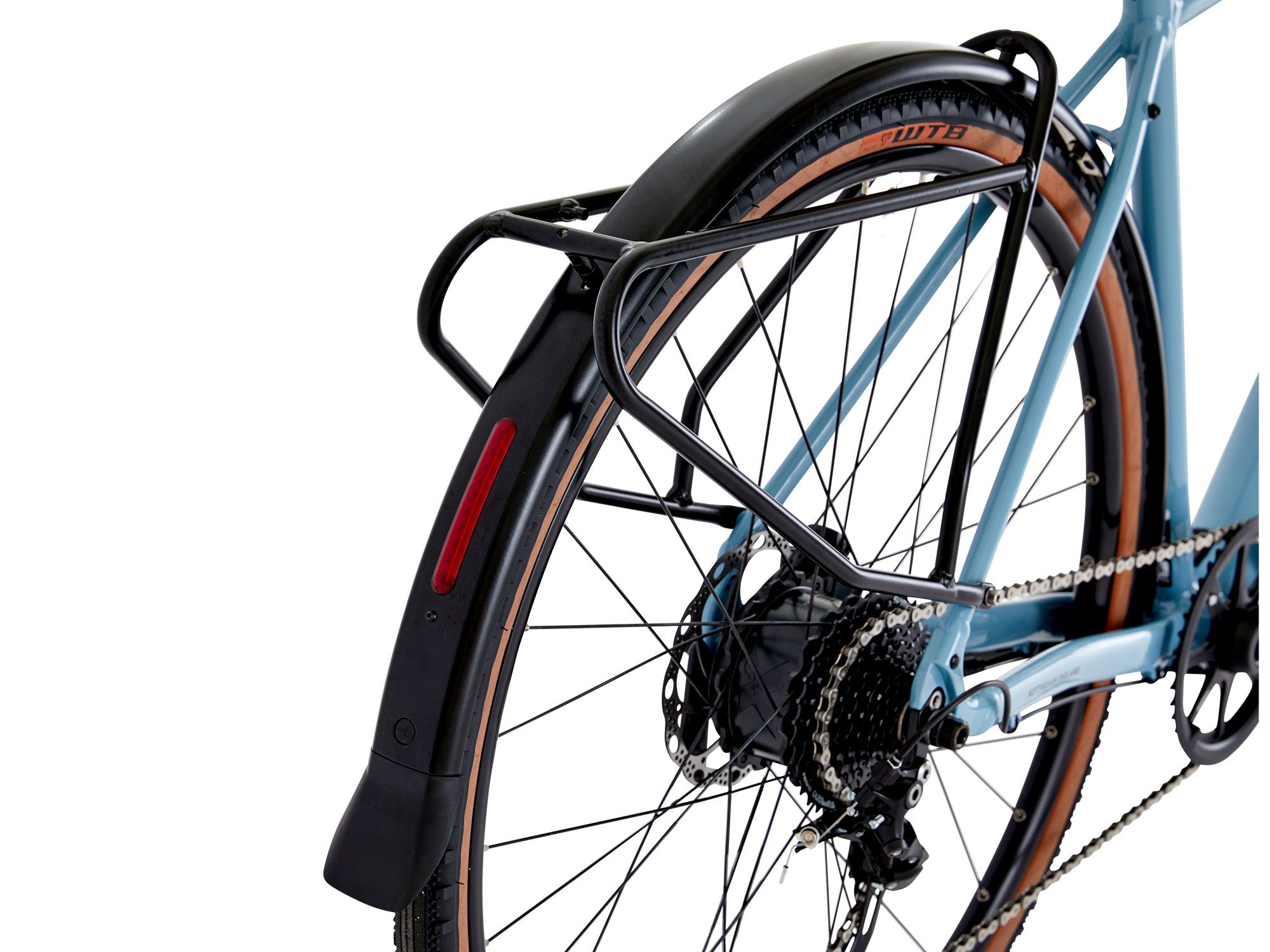

Rear Carrier: Low profile Rear Carrier
Rear Light: Integrated into Mudguard
E-System
Battery: Ebikemotion X35 internal battery 250Wh
Battery Charger Type: Ebikemotion X35 2A
Battery Charging Time: 4 hours
Battery Integration: Interna;
Battery Watts per Hour: 250Wh

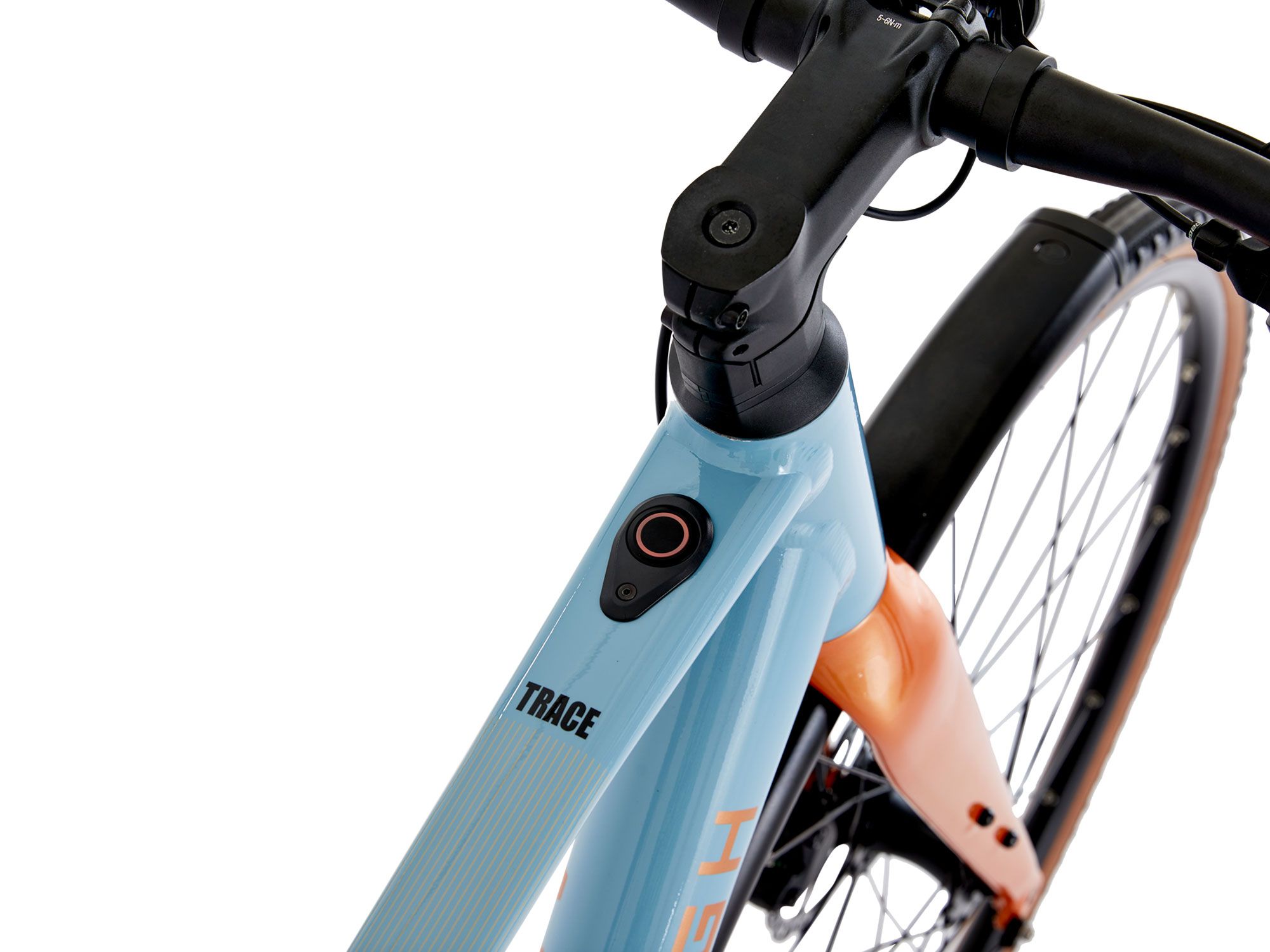

Display: Ebikemotion X35 Top Tube HMI iWoc 1 Control
Max Range: 50 miles
Motor: Ebikemotion X35 rear hub
Motor Position: Rear Wheel
Sensor: Ebikemotion Sensor
Controls
Front Brake: Tektro R280 Flat Mount Hydraulic Disc Brake, 160mm
Number of Gears: 9
Rear Brake: Tektro R280 Flat mount hydraulic disc brake, 160mm
Rear Shifter: Shimano Acera rapidfire 9 speed shifter
Comfort
Grips: XLC Comfort Grips

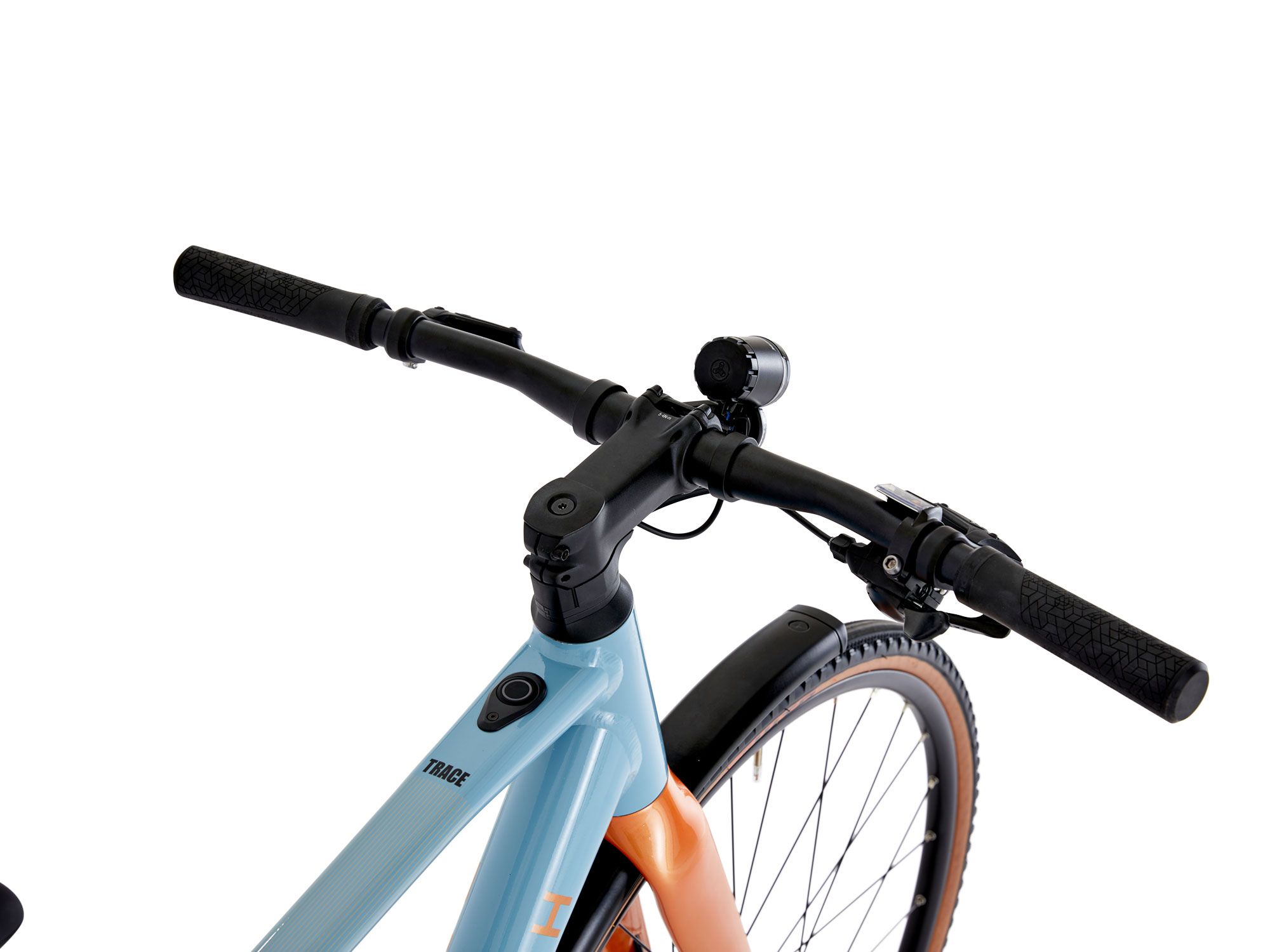

Handlebar: Aluminium Handlebar 640mm

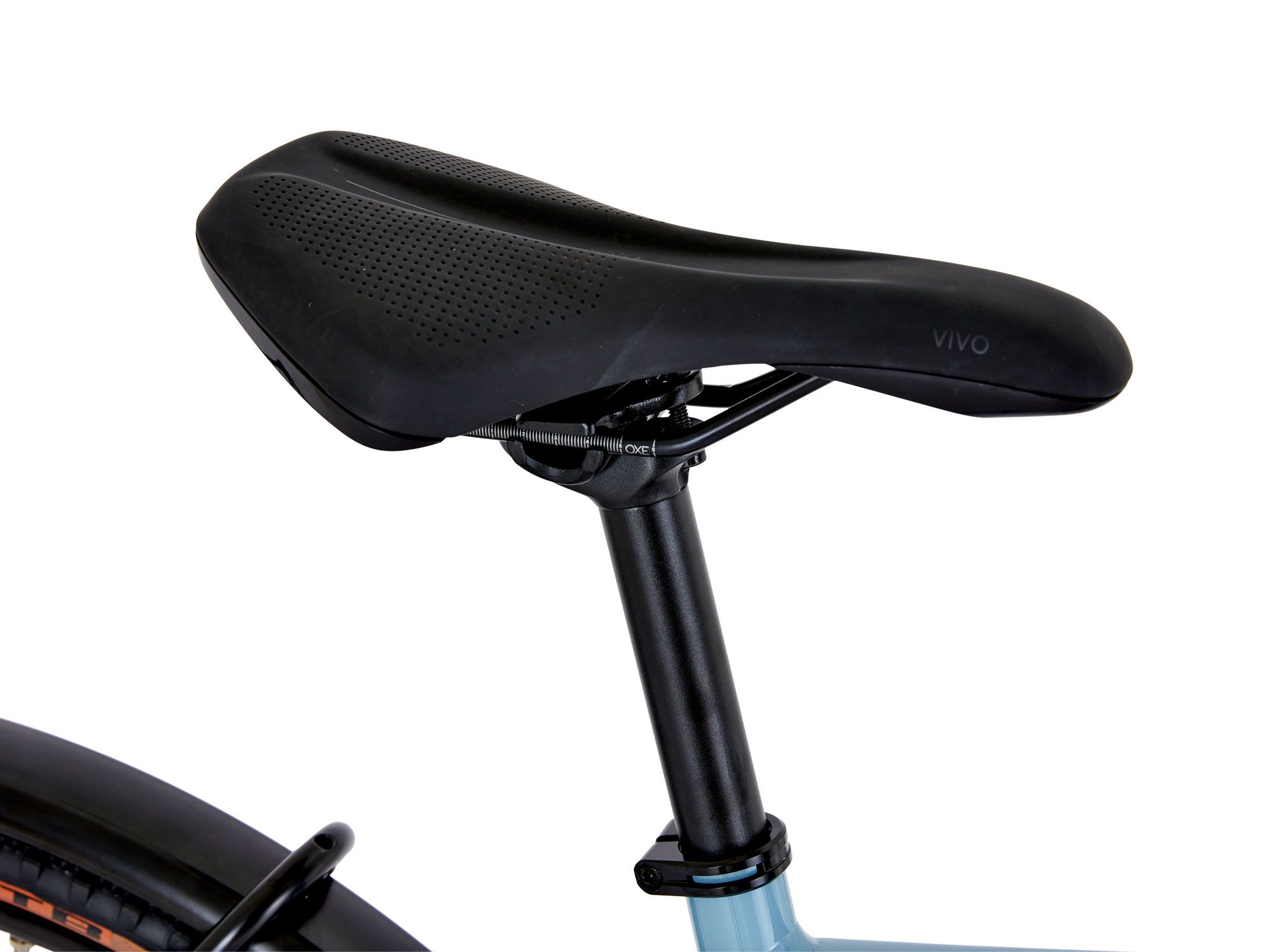

Saddle: Selle Royal Vivo
Seatpost: Aluminium Seatpost 27.2x350mm
Seatpost Clamp: Aluminium Clamp 31.9
Stem: Aluminium Stem XS/S-80mm, M-90mm, L-100mm
Wheels
Front Tyre : 700x40c WTB ByWAY tanwall
Front Wheel: 700c double side wall rim with thru axle aluminium hub 28H
Inner Tubes: 622×40 schrader valve
Rear Tyre: 700x40c WTB ByWAY tanwall
Rear Wheel:700c double side wall rim with X35 motor hub 32H
Rim: 700c double side wall rim with thru axle aluminium hub 28H
