Technical Specification

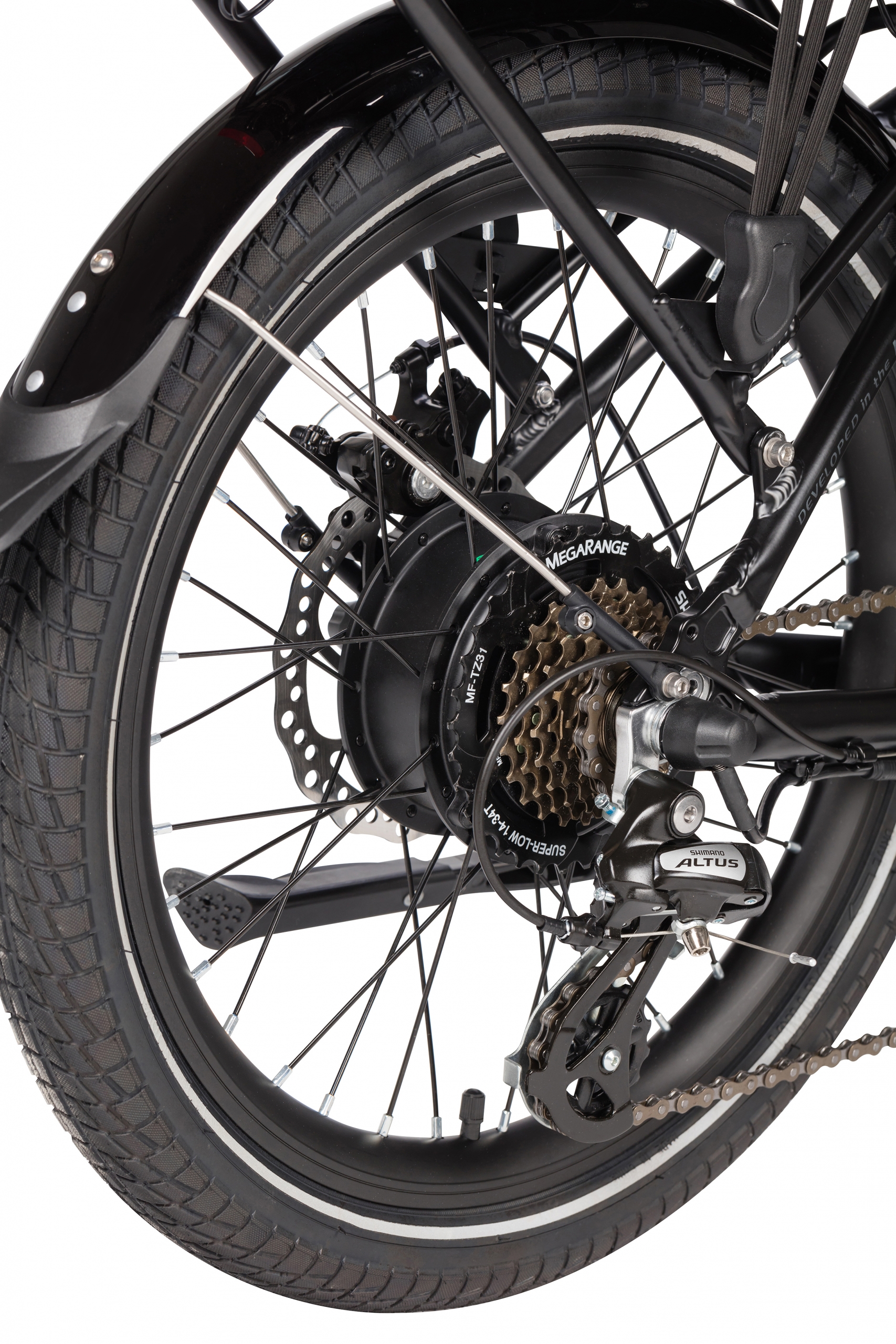

Motor
Wisper High efficiency,
250W hi torque brushless motor
Lithium Battery
Medium range 375Wh
Long range 575Wh
Mega range 700Wh
Assisted range
Total load, terrain, road surface, tyre pressures, speed, power setting used, wind conditions, and motor power all have a huge bearing on the bikes range.
With this in mind, you may expect to achieve the following AVERAGE ranges. Due to the number of outside factors affecting folding electric bike ranges, our published ranges are estimated based on our experience and are not guaranteed.
375Wh battery 15 to 30 or 40 miles with TPP*
575Wh battery 25 to 45 or 60 miles with TPP*
700Wh battery 35 to 60 or 85 miles with TPP*
*By upgrading to our high efficiency Torque Power Pack range may be extended by up to 30%
Controls

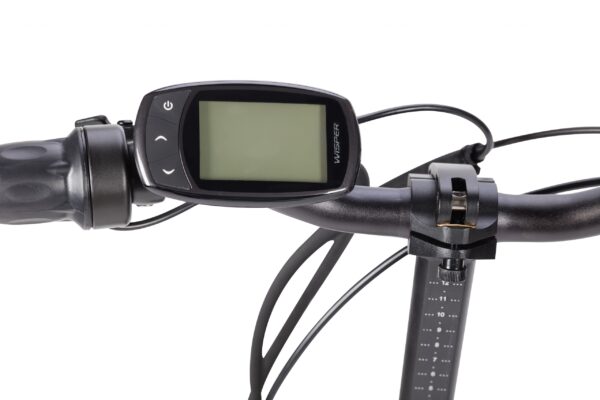

Wisper Back lit LCD display
Bicycle weight
375Wh: 21kg
575Wh: 22kg
700Wh: 22.5kg

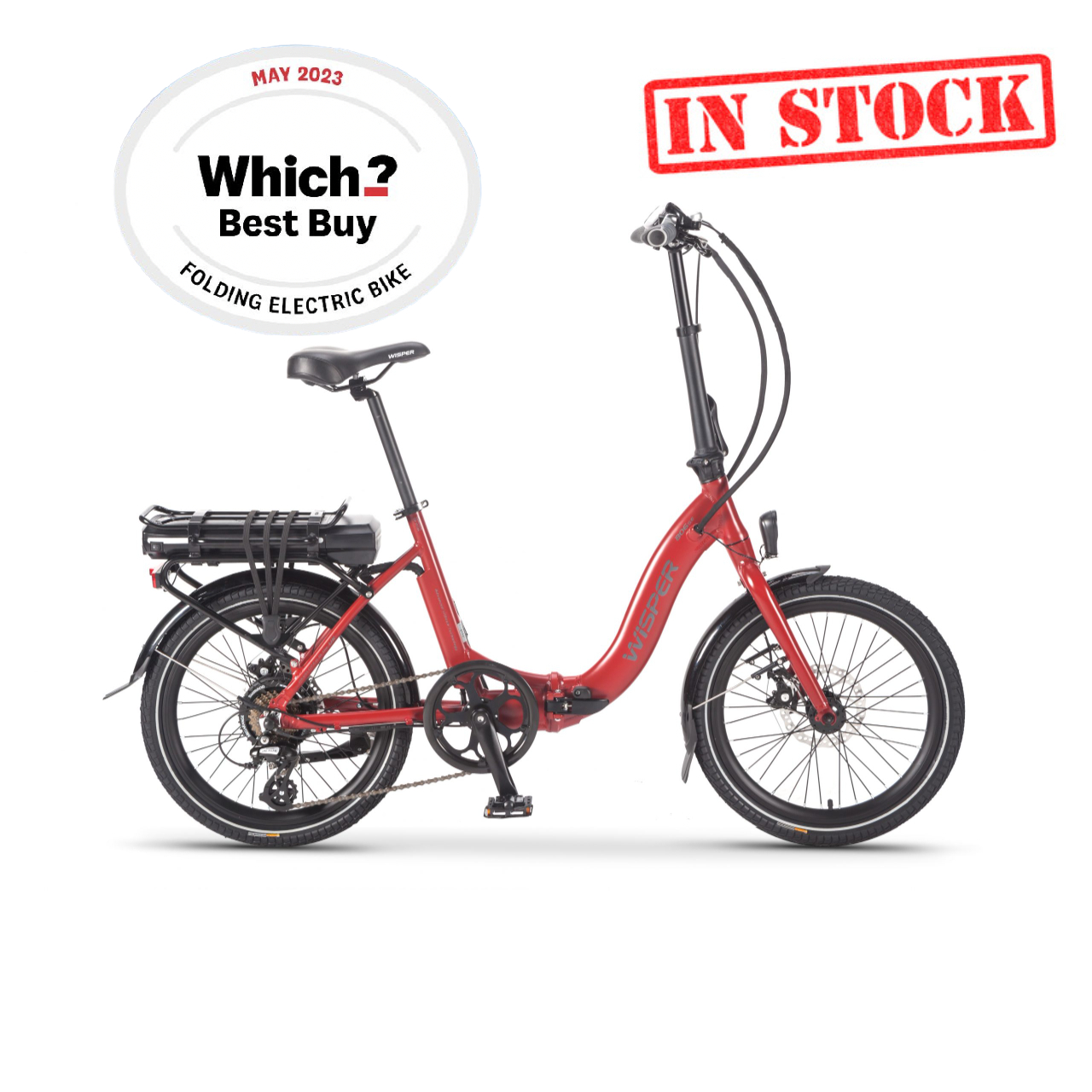

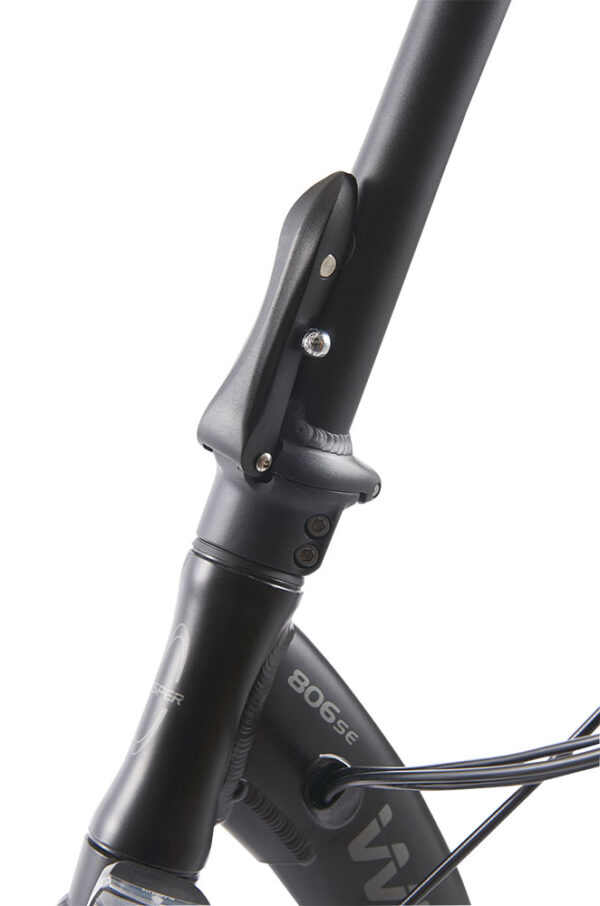

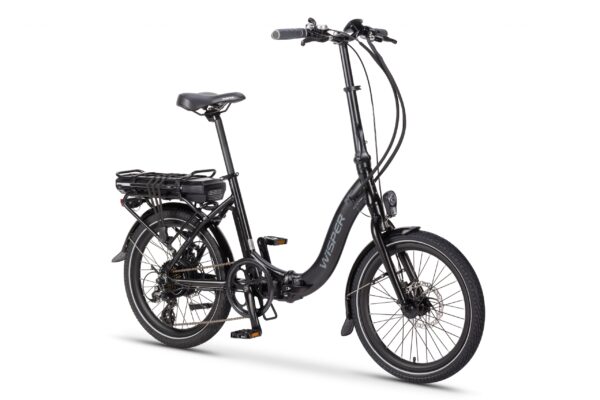

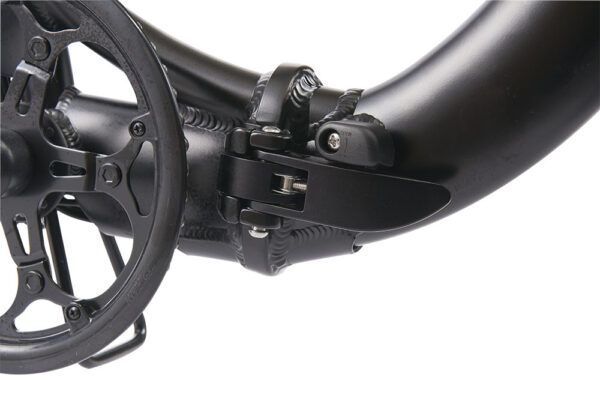

The 806 Folding bike is a sturdy long range ebike, with our superb locking mechanism locked you will not notice you are on a folder, there is no frame twist feel when riding. This is not a bike for hopping on and off the underground.
Frame
Hand welded, 6061 Alloy T4 and T6 tempered, hinge folding electric bike
Frame size
16” 40.6cm

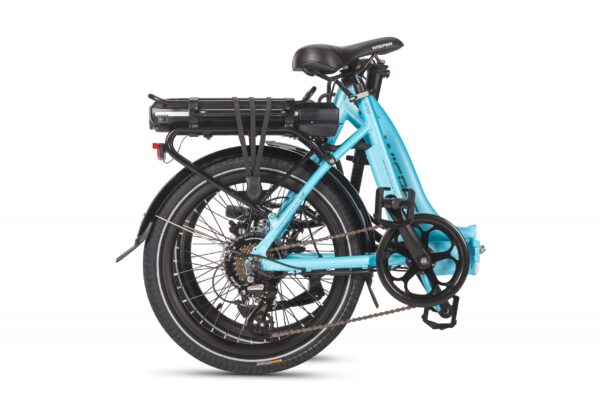

Bike Colour
Black, Blue, Red

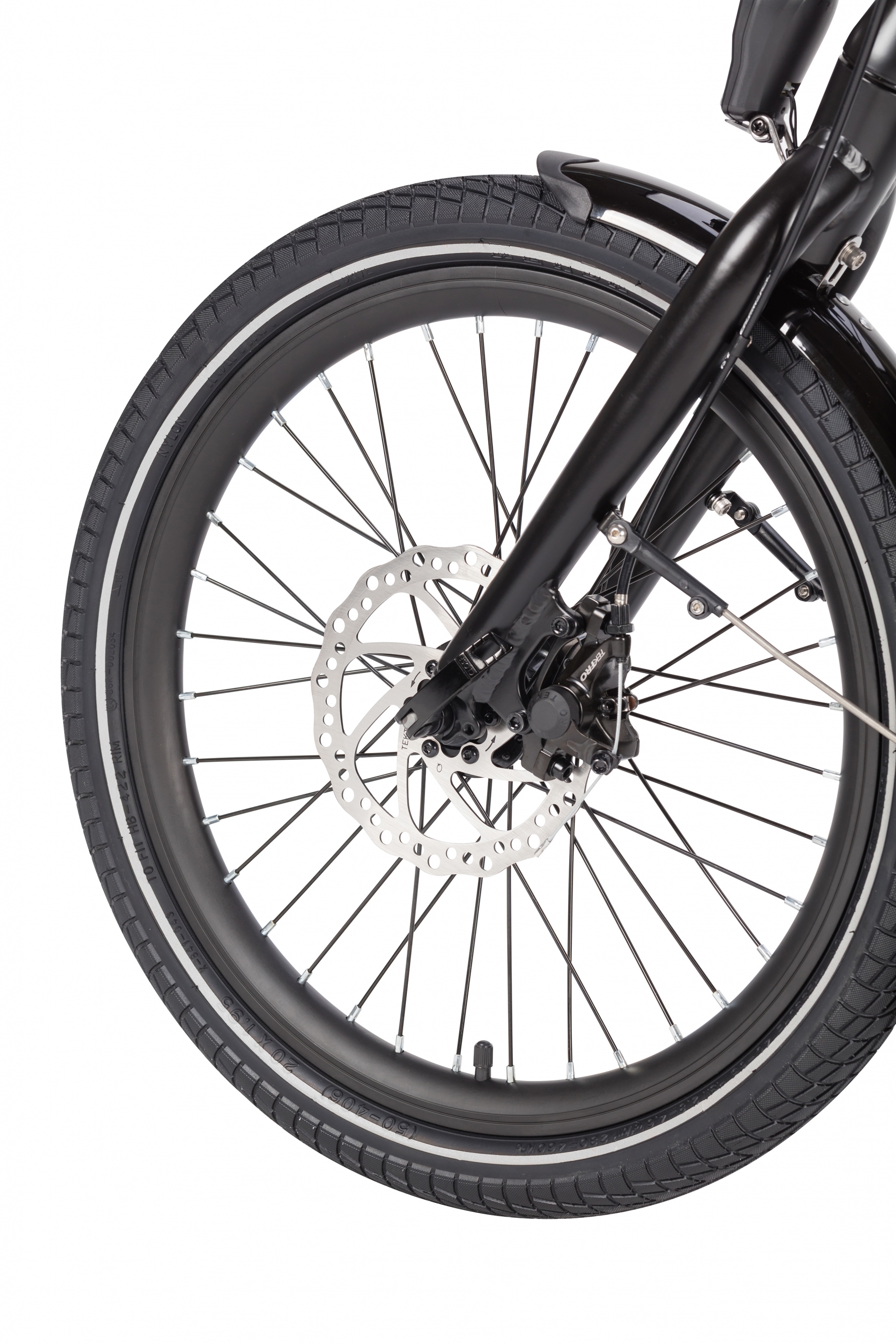

Forks
Wisper light weight alloy forks
Saddle
Wisper comfort
Kick stand
Black anodised alloy
Gears
SHIMANO 7 speed derailleur with 7 speed selector
Brakes

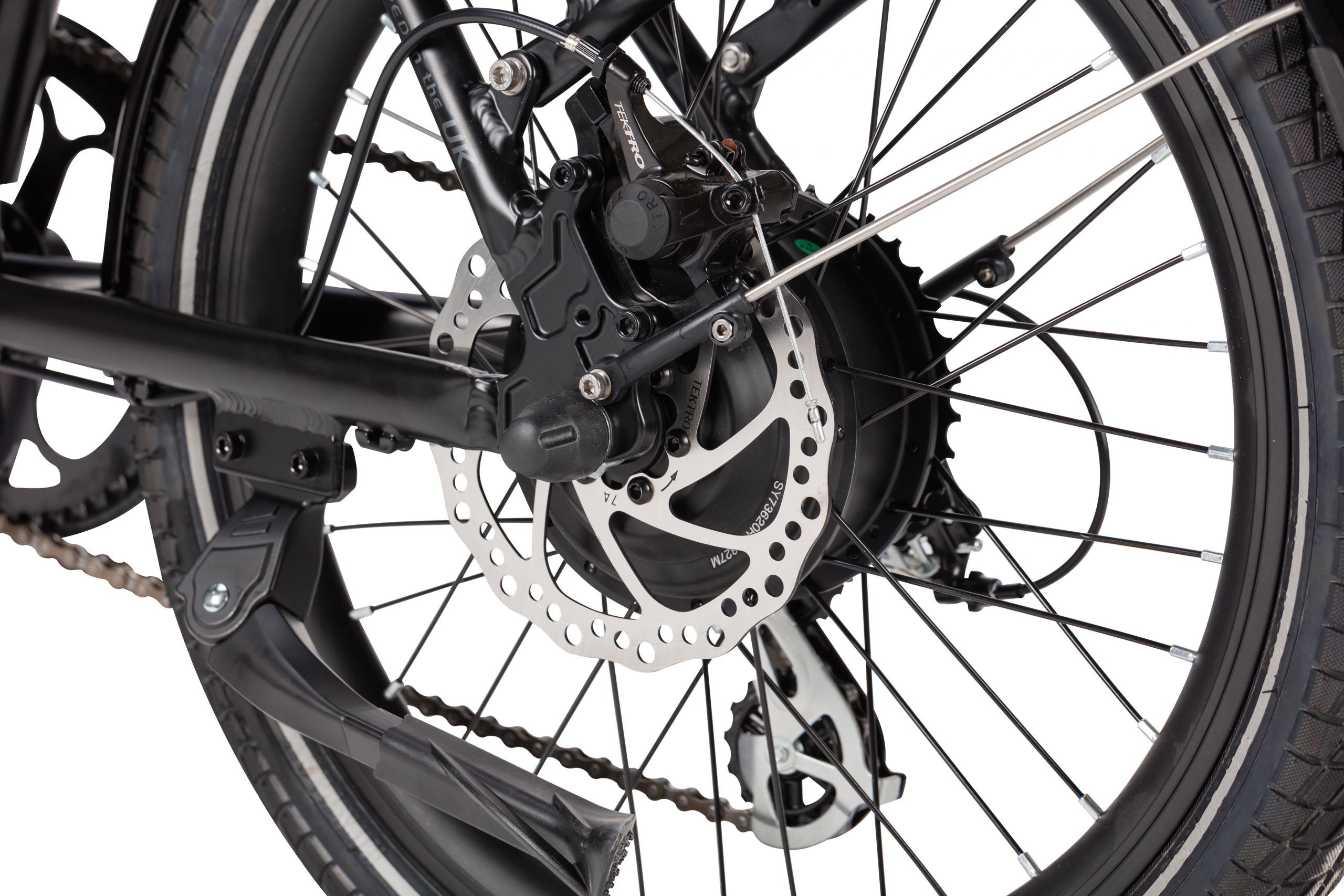

180mm disc brake front and 160mm rear
Wheels
Alloy double walled 20” x 1.5”
Tyres
Kenda 20” 1.95 high puncture resistance with wall reflector
Mudguards
Black Full length, shatterproof
Lighting
Front: 15W LED super bright
Rear: 36V light, power from bike battery
Rear Rack

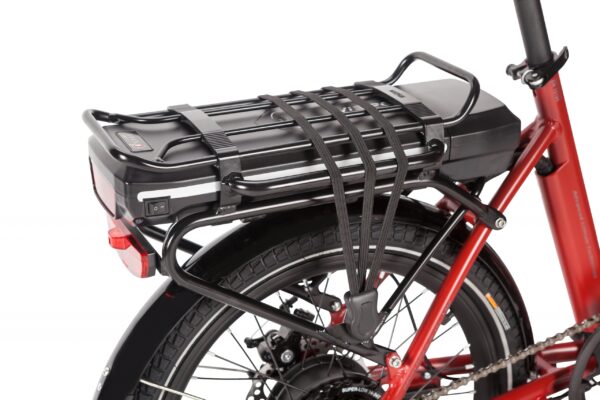

Wisper’s unique rear battery rack, certified to 25kg
Max Weight Loading Including Luggage
18 Stone / 115kg

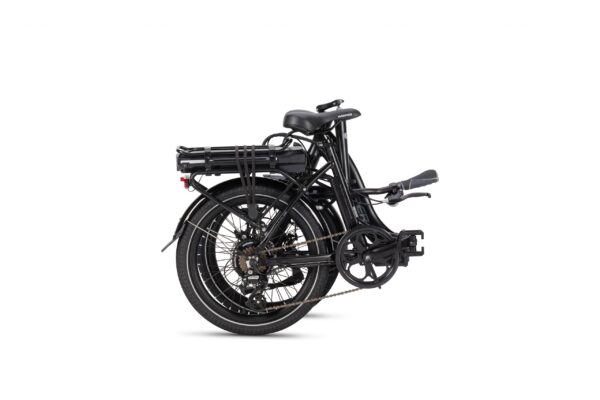

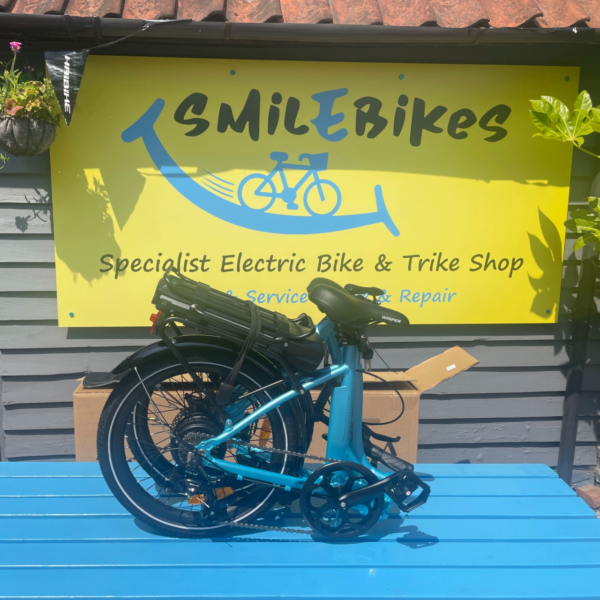

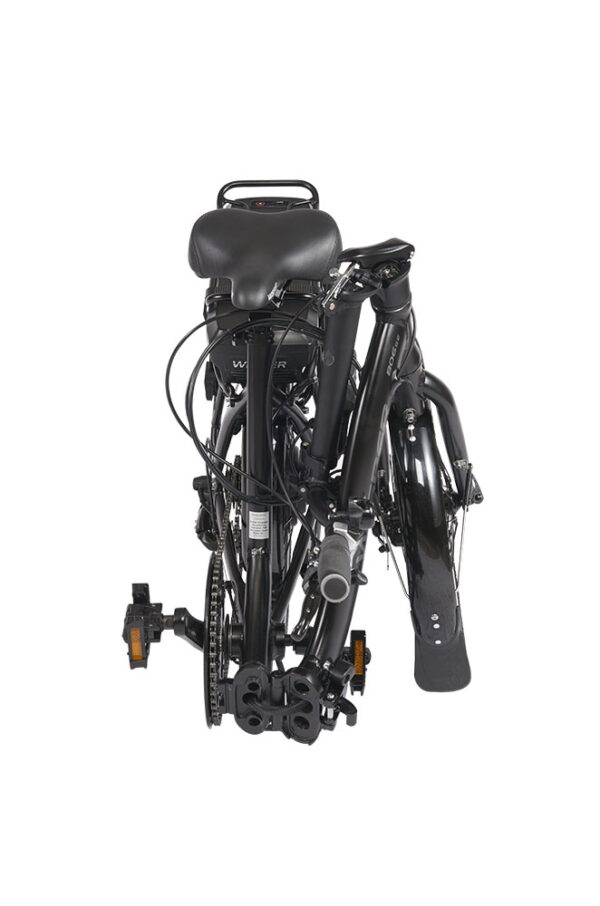

Bike Dimensions When Folded
D50cm x W100cm x H70cm
Wheelbase when unfolded 102cm
